斐波那契堆

提示
  1. 定义和特点：斐波那契堆是一种由最小堆或最大堆属性的树集合组成的数据结构，其中节点可以有多个子节点或没有子节点，操作效率高于二项式堆和二叉堆。
  2. 节点表示和结构：斐波那契堆的所有树的根节点通过循环双向链表相连，提高了访问速度，并使节点的删除和链表的连接仅需 O(1) 时间。
  3. 主要操作和复杂度：斐波那契堆支持插入（O(1)）、查找最小值（O(1)）、合并（O(1)）、提取最小值（O(log n)）、减小键值（O(1)）和删除节点（O(log n)）等操作。

Fibonacci 堆是一种数据结构，由遵循最小堆或最大堆属性的树的集合组成。我们已经在堆数据结构文章中讨论了最小堆和最大堆属性。这两个属性是 Fibonacci 堆上存在的树的特征。

在 Fibonacci 堆中，一个节点可以有多于两个孩子，或者根本没有孩子。此外，它比二项式堆和二叉堆支持更高效的堆操作。

Fibonacci 堆之所以被称为Fibonacci堆，是因为这些树是以这样的方式构建的，即一个顺序为n的树至少有Fn+2个节点，其中Fn+2是第(n + 2)个斐波那契数。

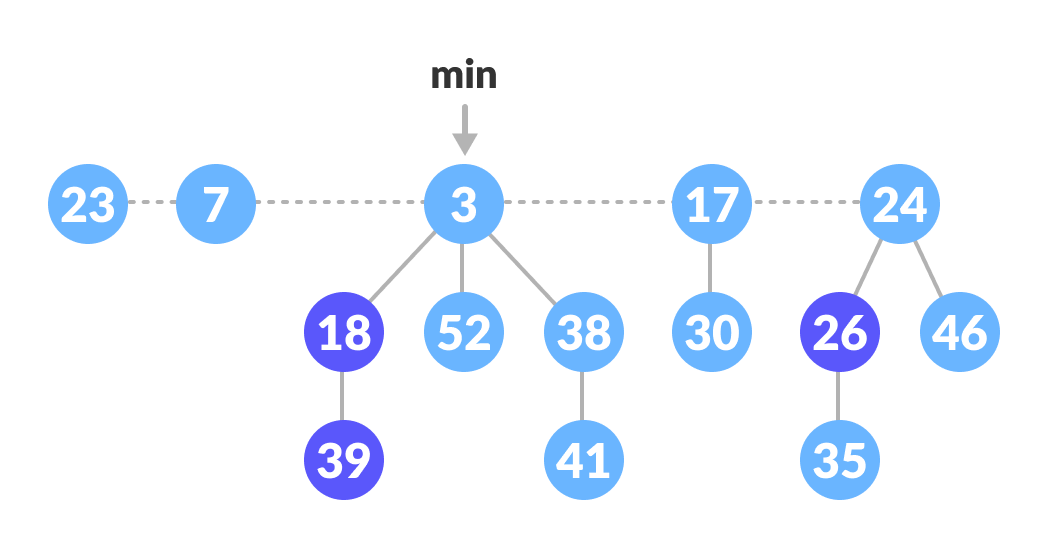

Fibonacci 堆

Fibonacci 堆的属性​

Fibonacci 堆的重要属性包括：

  1. 它是一组最小堆-**有序**的树。（即父节点始终小于子节点。）
  2. 维护了一个指向最小元素节点的指针。
  3. 它由一组标记节点组成。（减小键操作）
  4. Fibonacci 堆中的树是无序的，但是有根的。

Fibonacci 堆中节点的内存表示​

所有树的根节点都链接在一起，以便更快地访问。父节点的子节点通过一个循环双向链表连接在一起，如下所示。

使用循环双向链表有两个主要优点。

  1. 从树中删除节点需要O(1)的时间。
  2. 两个这样的链表的连接需要O(1)的时间。

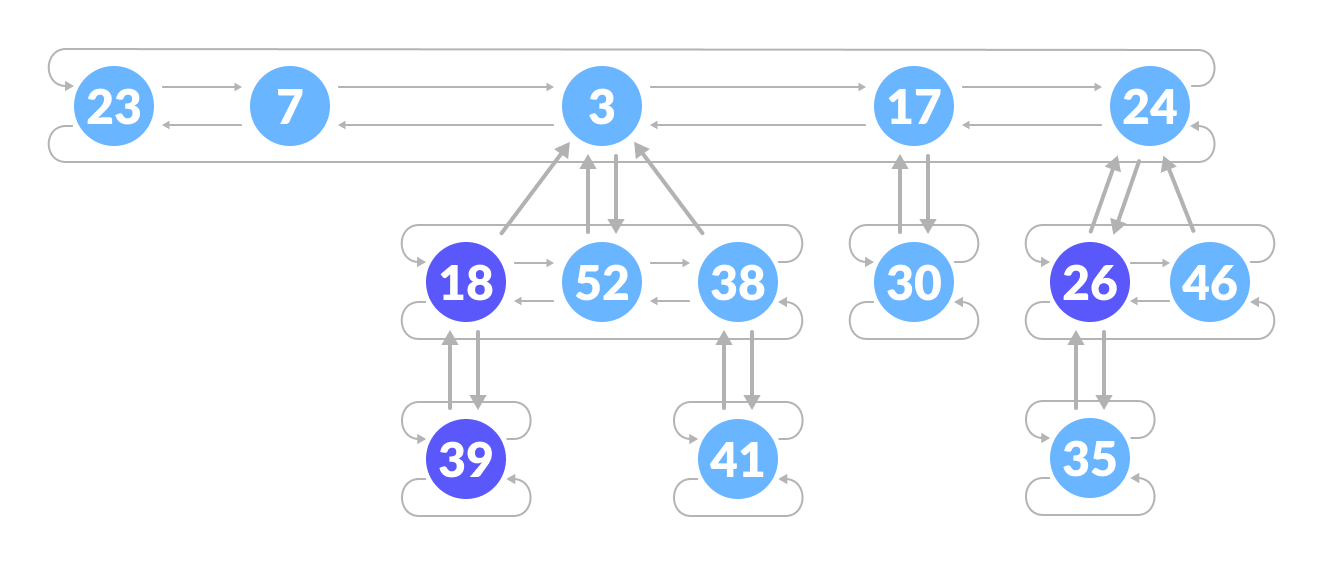

Fibonacci 堆结构

Fibonacci 堆上的操作​

插入​

算法

insert(H, x)
    degree[x] = 0
    p[x] = NIL
    child[x] = NIL
    left[x] = x
    right[x] = x
    mark[x] = FALSE
    将包含 x 的根列表与根列表 H 连接
    如果 min[H] == NIL 或 key[x] < key[min[H]]
        则 min[H] = x
    n[H] = n[H] + 1

将节点插入到已存在的堆中，按照以下步骤进行。

  1. 为元素创建一个新节点。
  2. 检查堆是否为空。
  3. 如果堆为空，则将新节点设置为根节点并标记为min。
  4. 否则，将节点插入到根列表中并更新min。

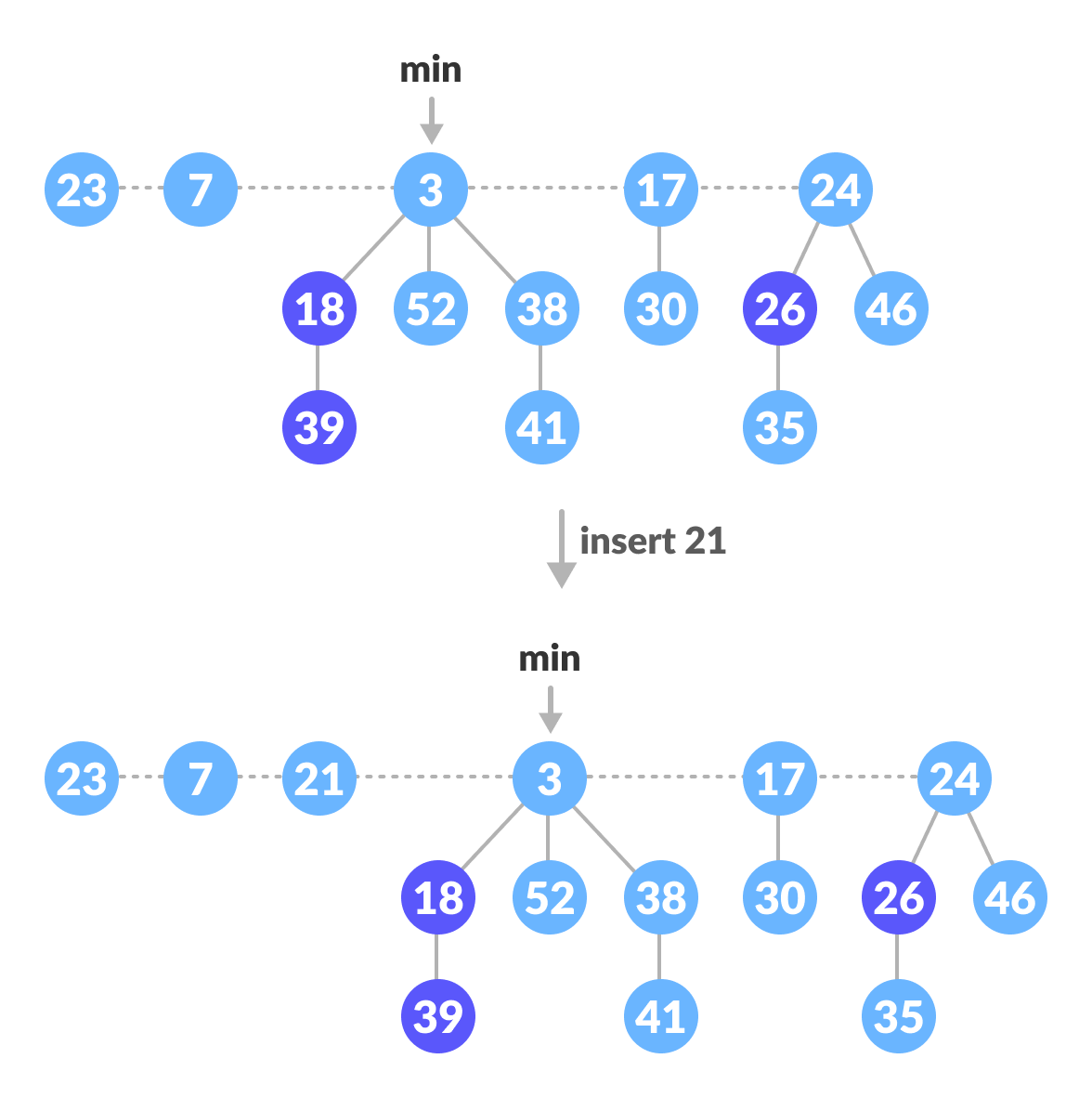

Fibonacci 堆中的插入操作

查找最小值​

最小元素始终由min指针给出。

合并​

两个 Fibonacci 堆的合并包括以下步骤。

  1. 连接两个堆的根。
  2. 通过选择新根列表中的最小键来更新min。

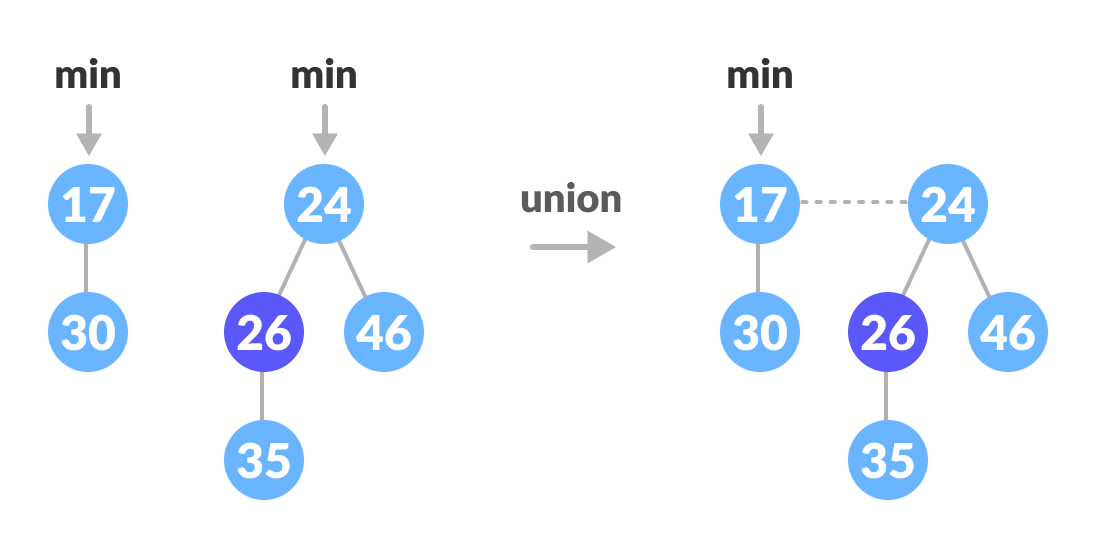

两个堆的合并

提取最小值​

这是 Fibonacci 堆上的最重要操作。在此操作中，从堆中删除具有最小值的节点，并重新调整树。

遵循以下步骤：

  1. 删除最小节点。
  2. 将最小指针设置为根列表中的下一个根。
  3. 创建一个大小等于删除前堆中树的最大度数的数组。
  4. 执行以下操作（步骤 5-7），直到没有具有相同度数的多个根。
  5. 将当前根（最小指针）的度数映射到数组中的度数。
  6. 将下一个根的度数映射到数组中的度数。
  7. 如果存在相同度数的两个映射，则对这些根应用合并操作，以保持最小堆属性（即最小值位于根部）。

上述步骤的实现可以在以下示例中理解。

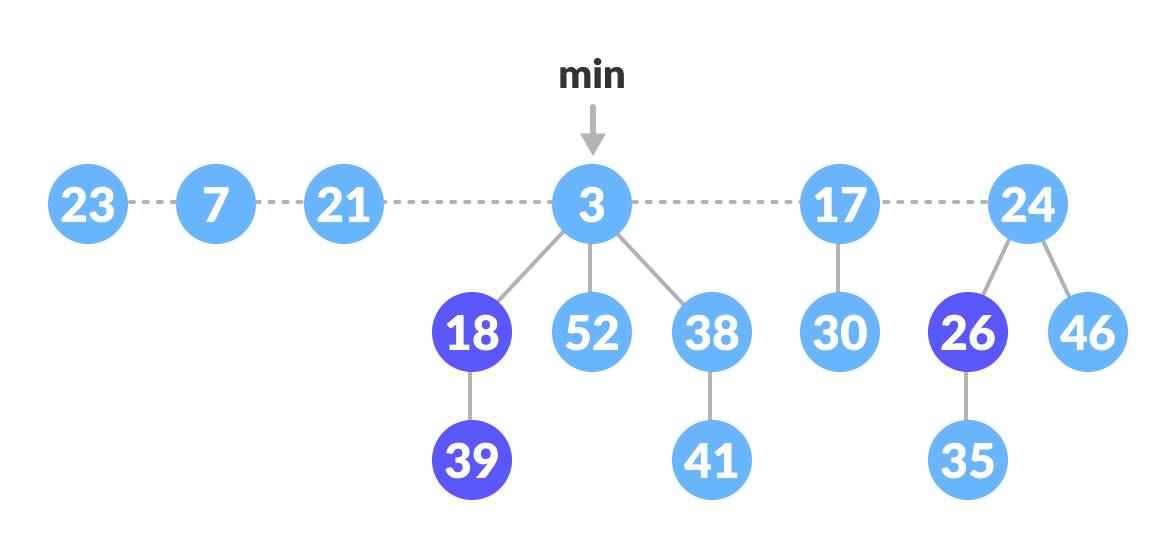

  1. 我们将在下面的堆上执行提取最小值操作。 提取最小值

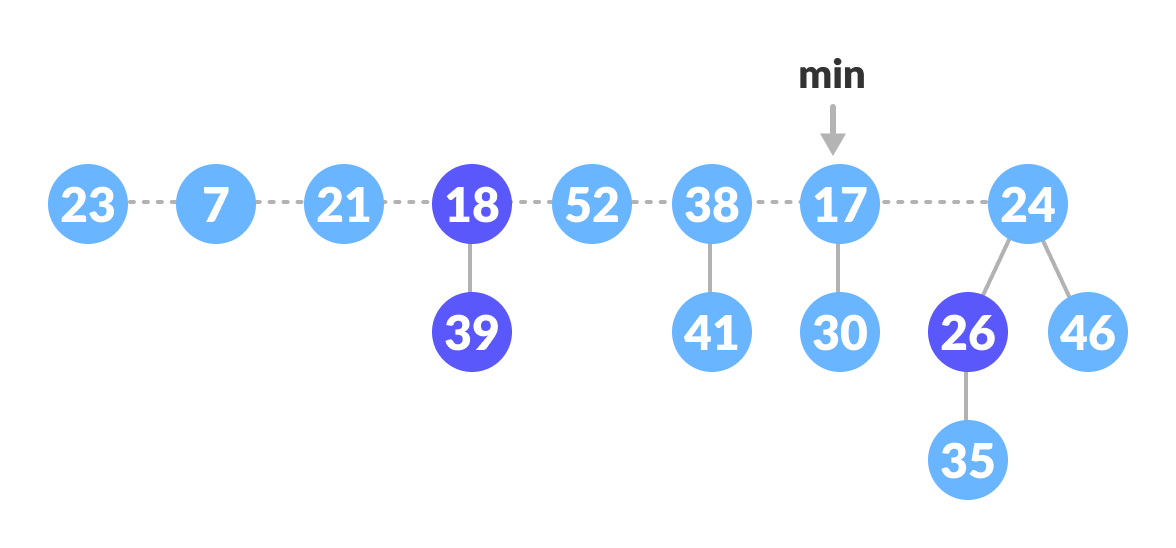

  2. 删除最小节点，将其所有子节点添加到根列表中，并将最小指针设置为根列表中的下一个根。 删除最小节点

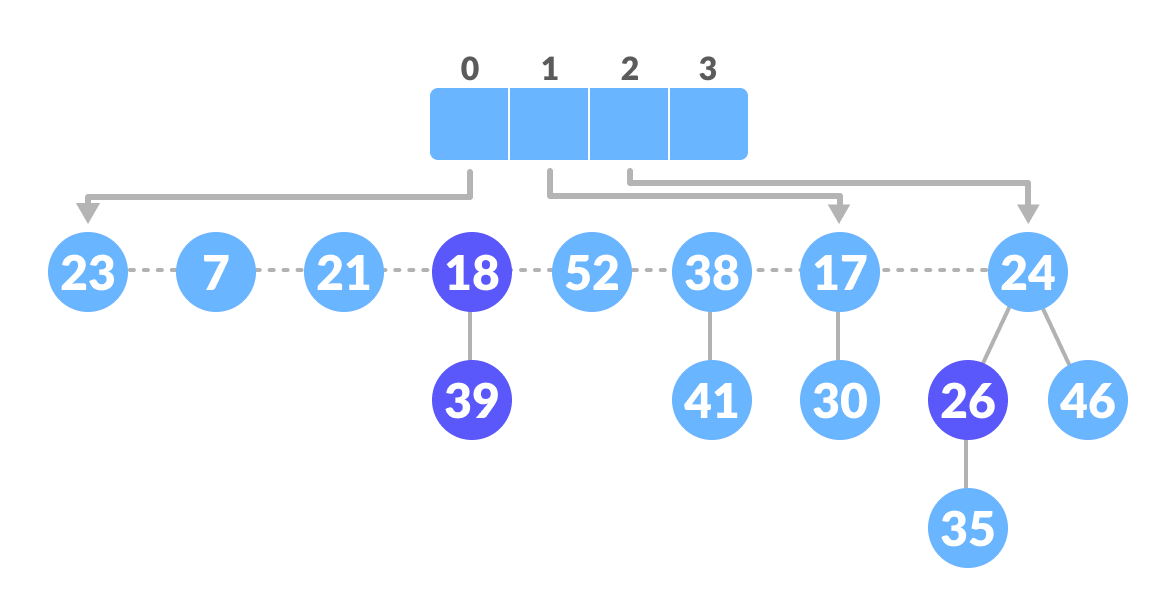

  3. 树中的最大度数是 3。创建大小为 4 的数组，并将下一个根的度数映射到数组中。 创建数组

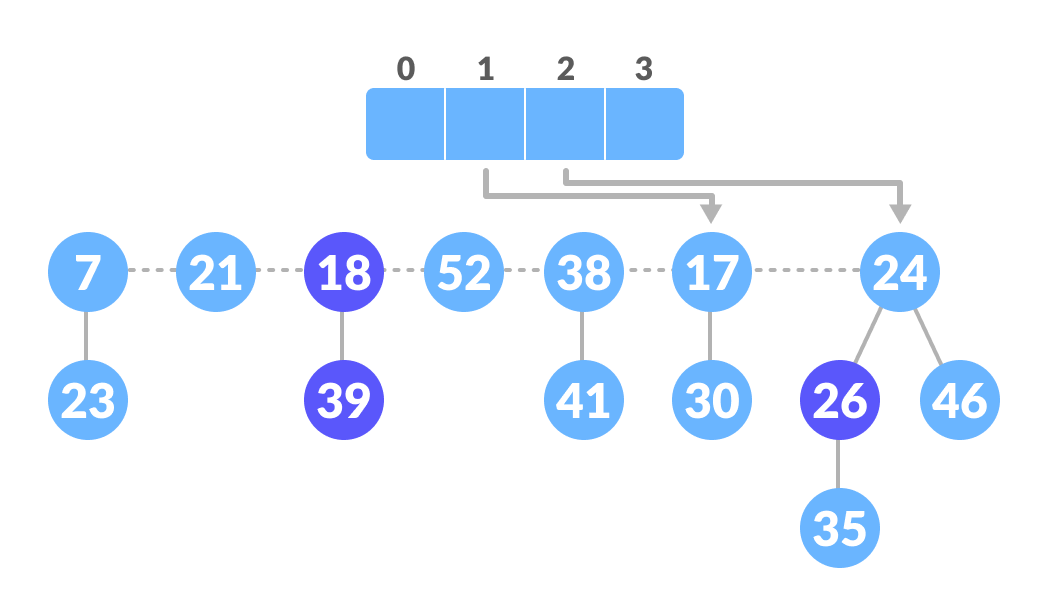

  4. 在这里，23 和 7 具有相同的度数，因此将它们合并。 合并具有相同度数的根

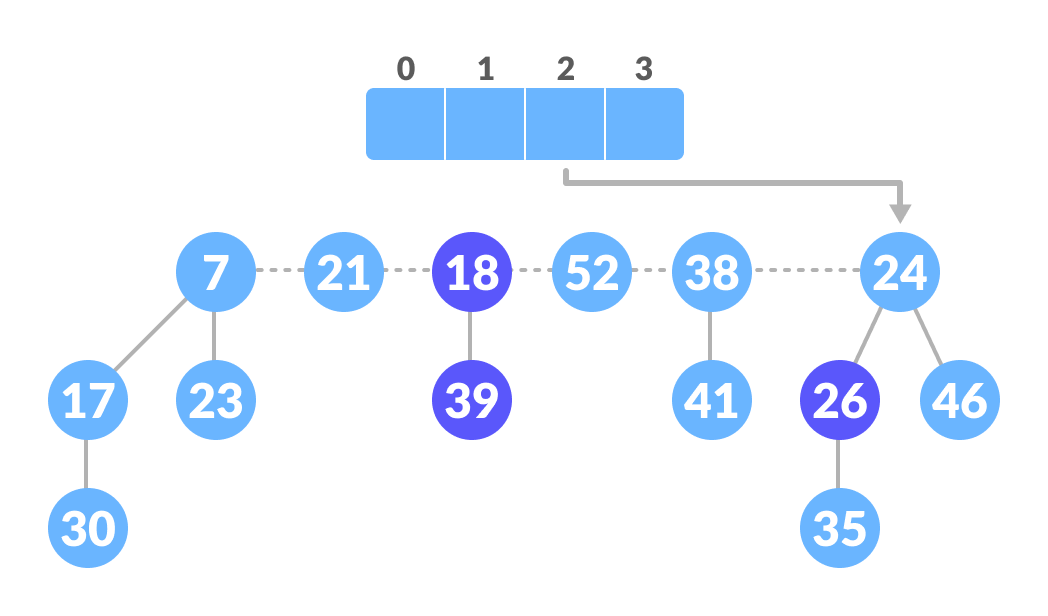

  5. 再次，7 和 17 具有相同的度数，因此也将它们合并。 合并具有相同度数的根

  6. 再次，7 和 24 具有相同的度数，因此将它们合并。 合并具有相同度数的根

  7. 映射下一个节点。 映射剩余节点

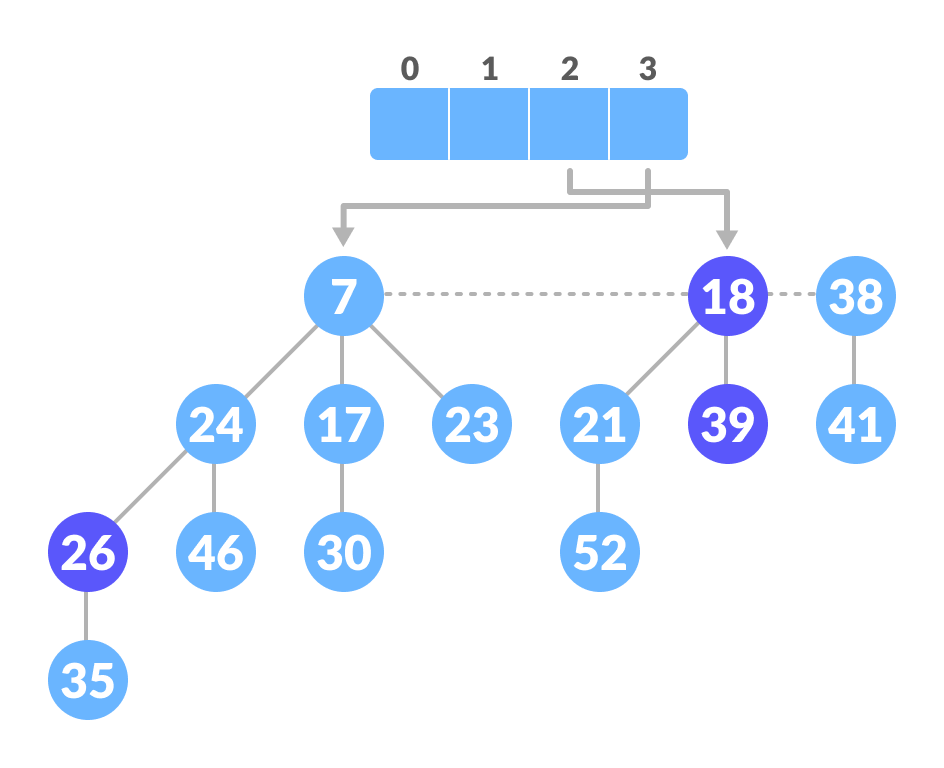

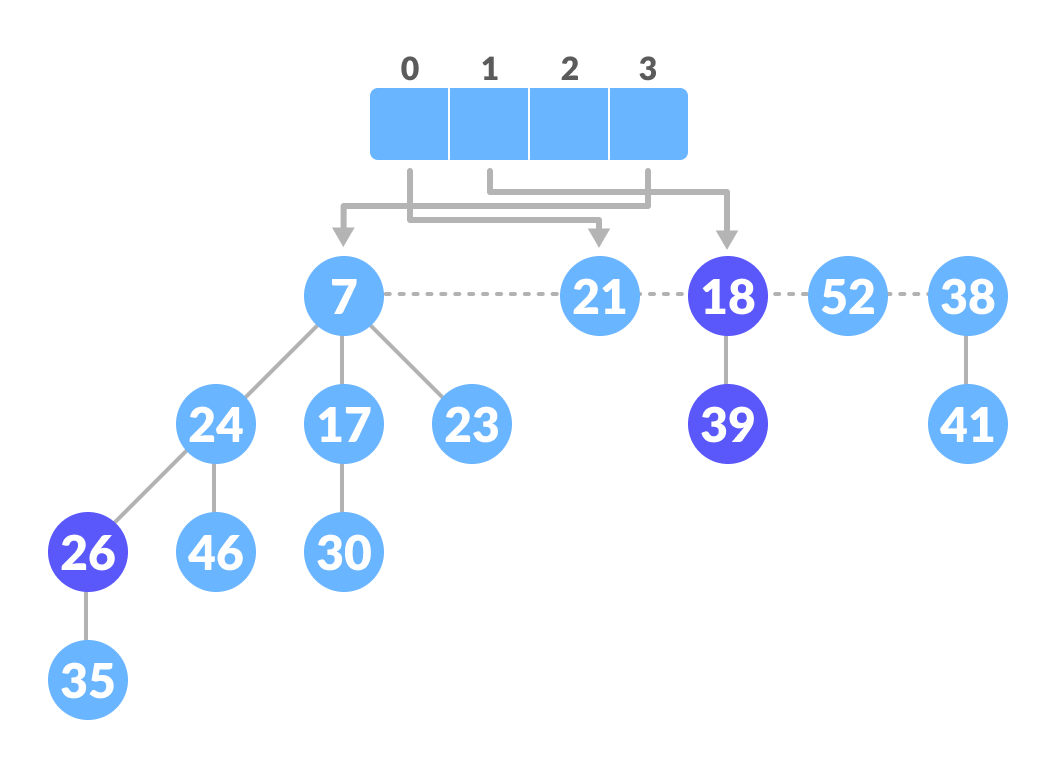

  8. 再次，52 和 21 具有相同的度数，因此合并它们。 合并具有相同度数的根

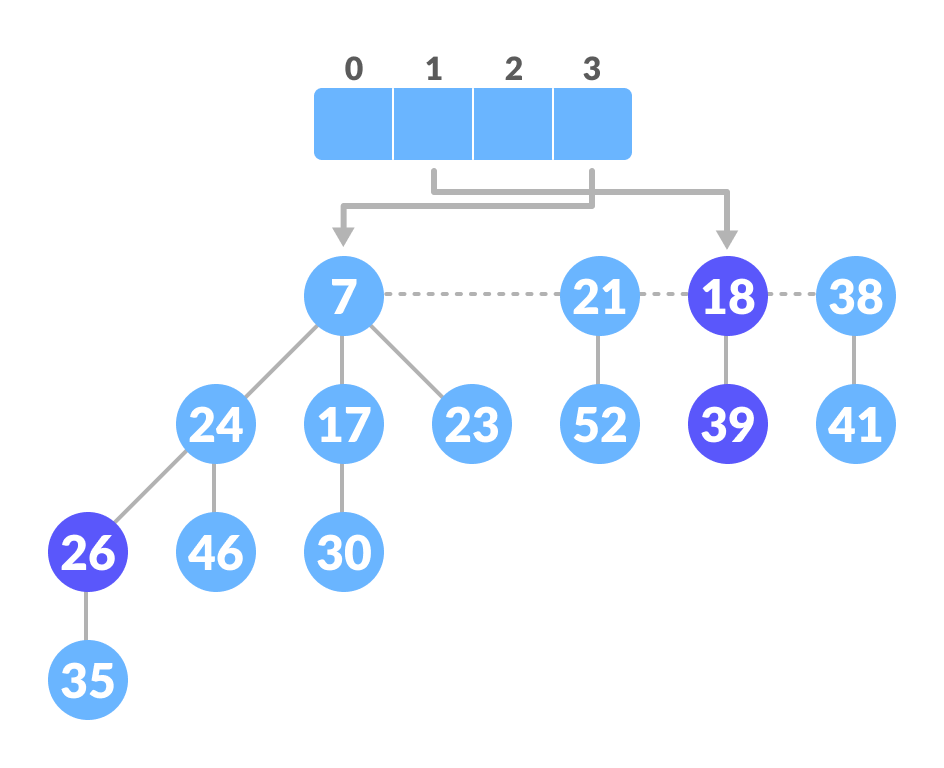

  9. 类似地，合并 21 和 18。 合并具有相同度数的根

  10. 映射剩余的根。 映射剩余的节点

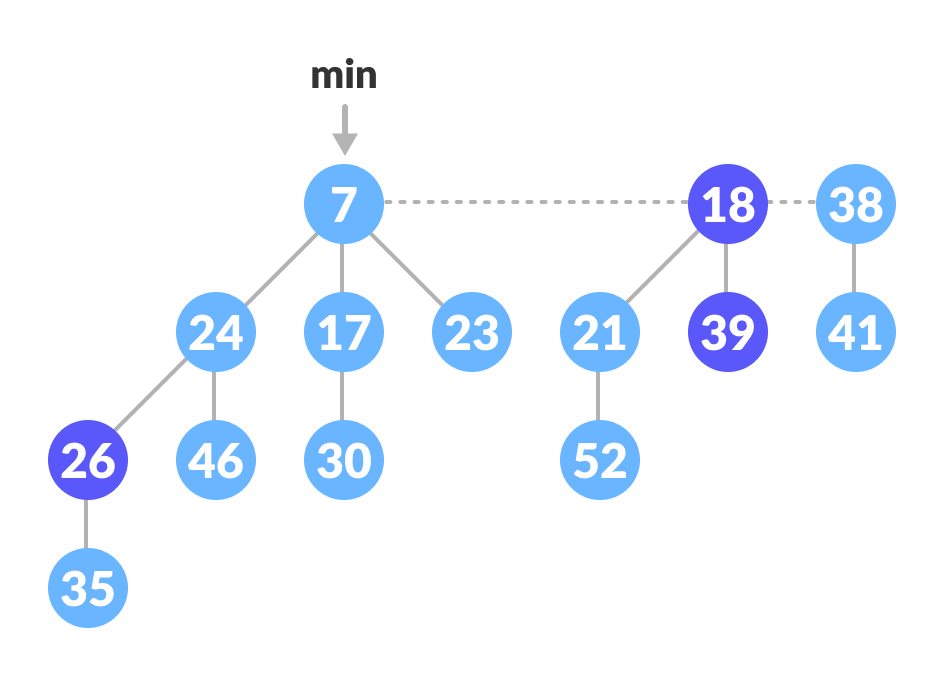

  11. 最终的堆是。 最终的堆

减小键和删除节点​

这是讨论的最重要操作，在减小键和删除节点操作中有详细介绍。

Python、Java 和 C/C++ 示例​

Python Java C C++

# Python 中的 Fibonacci 堆

import math

# 创建 Fibonacci 树
class FibonacciTree:
    def __init__(self, value):
        self.value = value
        self.child = []
        self.order = 0

    # 在树的末尾添加树
    def add_at_end(self, t):
        self.child.append(t)
        self.order = self.order + 1

# 创建 Fibonacci 堆
class FibonacciHeap:
    def __init__(self):
        self.trees = []
        self.least = None
        self.count = 0

    # 插入一个节点
    def insert_node(self, value):
        new_tree = FibonacciTree(value)
        self.trees.append(new_tree)
        if (self.least is None or value < self.least.value):
            self.least = new_tree
        self.count = self.count + 1

    # 获取最小值
    def get_min(self):
        if self.least is None:
            return None
        return self.least.value

    # 提取最小值
    def extract_min(self):
        smallest = self.least
        if smallest is not None:
            for child in smallest.child:
                self.trees.append(child)
            self.trees.remove(smallest)
            if self.trees == []:
                self.least = None
            else:
                self.least = self.trees[0]
                self.consolidate()
            self.count = self.count - 1
            return smallest.value

    # 合并树
    def consolidate(self):
        aux = (floor_log(self.count) + 1) * [None]

        while self.trees != []:
            x = self.trees[0]
            order = x.order
            self.trees.remove(x)
            while aux[order] is not None:
                y = aux[order]
                if x.value > y.value:
                    x, y = y, x
                x.add_at_end(y)
                aux[order] = None
                order = order + 1
            aux[order] = x

        self.least = None
        for k in aux:
            if k is not None:
                self.trees.append(k)
                if (self.least is None
                        or k.value < self.least.value):
                    self.least = k


def floor_log(x):
    return math.frexp(x)[1] - 1

fibonacci_heap = FibonacciHeap()

fibonacci_heap.insert_node(7)
fibonacci_heap.insert_node(3)
fibonacci_heap.insert_node(17)
fibonacci_heap.insert_node(24)

print('Fibonacci 堆的最小值: {}'.format(fibonacci_heap.get_min()))

print('删除的最小值: {}'.format(fibonacci_heap.extract_min()))
// 在Java中的Fibonacci堆上的操作

// 节点创建
class node {
  node parent;
  node left;
  node right;
  node child;
  int degree;
  boolean mark;
  int key;

  public node() {
    this.degree = 0;
    this.mark = false;
    this.parent = null;
    this.left = this;
    this.right = this;
    this.child = null;
    this.key = Integer.MAX_VALUE;
  }

  node(int x) {
    this();
    this.key = x;
  }

  void set_parent(node x) {
    this.parent = x;
  }

  node get_parent() {
    return this.parent;
  }

  void set_left(node x) {
    this.left = x;
  }

  node get_left() {
    return this.left;
  }

  void set_right(node x) {
    this.right = x;
  }

  node get_right() {
    return this.right;
  }

  void set_child(node x) {
    this.child = x;
  }

  node get_child() {
    return this.child;
  }

  void set_degree(int x) {
    this.degree = x;
  }

  int get_degree() {
    return this.degree;
  }

  void set_mark(boolean m) {
    this.mark = m;
  }

  boolean get_mark() {
    return this.mark;
  }

  void set_key(int x) {
    this.key = x;
  }

  int get_key() {
    return this.key;
  }
}

public class fibHeap {
  node min;
  int n;
  boolean trace;
  node found;

  public boolean get_trace() {
    return trace;
  }

  public void set_trace(boolean t) {
    this.trace = t;
  }

  public static fibHeap create_heap() {
    return new fibHeap();
  }

  fibHeap() {
    min = null;
    n = 0;
    trace = false;
  }

  // 插入节点
  private void insert(node x) {
    if (min == null) {
      min = x;
      x.set_left(min);
      x.set_right(min);
    } else {
      x.set_right(min);
      x.set_left(min.get_left());
      min.get_left().set_right(x);
      min.set_left(x);
      if (x.get_key() < min.get_key())
        min = x;
    }
    n += 1;
  }

  public void insert(int key) {
    insert(new node(key));
  }

  public void display() {
    display(min);
    System.out.println();
  }

  private void display(node c) {
    System.out.print("(");
    if (c == null) {
      System.out.print(")");
      return;
    } else {
      node temp = c;
      do {
        System.out.print(temp.get_key());
        node k = temp.get_child();
        display(k);
        System.out.print("->");
        temp = temp.get_right();
      } while (temp != c);
      System.out.print(")");
    }
  }

  public static void merge_heap(fibHeap H1, fibHeap H2, fibHeap H3) {
    H3.min = H1.min;

    if (H1.min != null && H2.min != null) {
      node t1 = H1.min.get_left();
      node t2 = H2.min.get_left();
      H1.min.set_left(t2);
      t1.set_right(H2.min);
      H2.min.set_left(t1);
      t2.set_right(H1.min);
    }
    if (H1.min == null || (H2.min != null && H2.min.get_key() < H1.min.get_key()))
      H3.min = H2.min;
    H3.n = H1.n + H2.n;
  }

  public int find_min() {
    return this.min.get_key();
  }

  private void display_node(node z) {
    System.out.println("right: " + ((z.get_right() == null) ? "-1" : z.get_right().get_key()));
    System.out.println("left: " + ((z.get_left() == null) ? "-1" : z.get_left().get_key()));
    System.out.println("child: " + ((z.get_child() == null) ? "-1" : z.get_child().get_key()));
    System.out.println("degree " + z.get_degree());
  }

  public int extract_min() {
    node z = this.min;
    if (z != null) {
      node c = z.get_child();
      node k = c, p;
      if (c != null) {
        do {
          p = c.get_right();
          insert(c);
          c.set_parent(null);
          c = p;
        } while (c != null && c != k);
      }
      z.get_left().set_right(z.get_right());
      z.get_right().set_left(z.get_left());
      z.set_child(null);
      if (z == z.get_right())
        this.min = null;
      else {
        this.min = z.get_right();
        this.consolidate();
      }
      this.n -= 1;
      return z.get_key();
    }
    return Integer.MAX_VALUE;
  }

  public void consolidate() {
    double phi = (1 + Math.sqrt(5)) / 2;
    int Dofn = (int) (Math.log(this.n) / Math.log(phi));
    node[] A = new node[Dofn + 1];
    for (int i = 0; i <= Dofn; ++i)
      A[i] = null;
    node w = min;
    if (w != null) {
      node check = min;
      do {
        node x = w;
        int d = x.get_degree();
        while (A[d] != null) {
          node y = A[d];
          if (x.get_key() > y.get_key()) {
            node temp = x;
            x = y;
            y = temp;
            w = x;
          }
          fib_heap_link(y, x);
          check = x;
          A[d] = null;
          d += 1;
        }
        A[d] = x;
        w = w.get_right();
      } while (w != null && w != check);
      this.min = null;
      for (int i = 0; i <= Dofn; ++i) {
        if (A[i] != null) {
          insert(A[i]);
        }
      }
    }
  }

  // Linking operation
  private void fib_heap_link(node y, node x) {
    y.get_left().set_right(y.get_right());
    y.get_right().set_left(y.get_left());

    node p = x.get_child();
    if (p == null) {
        y.set_right(y);
        y.set_left(y);
    } else {
        y.set_right(p);
        y.set_left(p.get_left());
        p.get_left().set_right(y);
        p.set_left(y);
    }
    y.set_parent(x);
    x.set_child(y);
    x.set_degree(x.get_degree() + 1);
    y.set_mark(false);
}

// 搜索操作
private void find(int key, node c) {
    if (found != null || c == null)
        return;
    else {
        node temp = c;
        do {
            if (key == temp.get_key())
                found = temp;
            else {
                node k = temp.get_child();
                find(key, k);
                temp = temp.get_right();
            }
        } while (temp != c && found == null);
    }
}

public node find(int k) {
    found = null;
    find(k, this.min);
    return found;
}

public void decrease_key(int key, int nval) {
    node x = find(key);
    decrease_key(x, nval);
}

// 降低键值操作
private void decrease_key(node x, int k) {
    if (k > x.get_key())
        return;
    x.set_key(k);
    node y = x.get_parent();
    if (y != null && x.get_key() < y.get_key()) {
        cut(x, y);
        cascading_cut(y);
    }
    if (x.get_key() < min.get_key())
        min = x;
}

// 切割操作
private void cut(node x, node y) {
    x.get_right().set_left(x.get_left());
    x.get_left().set_right(x.get_right());

    y.set_degree(y.get_degree() - 1);

    x.set_right(null);
    x.set_left(null);
    insert(x);
    x.set_parent(null);
    x.set_mark(false);
}

private void cascading_cut(node y) {
    node z = y.get_parent();
    if (z != null) {
        if (y.get_mark() == false)
            y.set_mark(true);
        else {
            cut(y, z);
            cascading_cut(z);
        }
    }
}

// 删除操作
public void delete(node x) {
    decrease_key(x, Integer.MIN_VALUE);
    int p = extract_min();
}

public static void main(String[] args) {
    // 创建Fibonacci堆对象
    fibHeap obj = create_heap();
    obj.insert(7);
    obj.insert(26);
    obj.insert(30);
    obj.insert(39);
    obj.insert(10);
    obj.display();

    System.out.println(obj.extract_min());
    obj.display();
    System.out.println(obj.extract_min());
    obj.display();
    System.out.println(obj.extract_min());
    obj.display();
    System.out.println(obj.extract_min());
    obj.display();
    System.out.println(obj.extract_min());
    obj.display();
  }
}
// 在C中的Fibonacci堆上的操作

#include <math.h>
#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>

// 结构体定义
typedef struct _NODE {
  int key;
  int degree;
  struct _NODE *left_sibling;
  struct _NODE *right_sibling;
  struct _NODE *parent;
  struct _NODE *child;
  bool mark;
  bool visited;
} NODE;

typedef struct fibanocci_heap {
  int n;
  NODE *min;
  int phi;
  int degree;
} FIB_HEAP;

FIB_HEAP *make_fib_heap();
void insertion(FIB_HEAP *H, NODE *new, int val);
NODE *extract_min(FIB_HEAP *H);
void consolidate(FIB_HEAP *H);
void fib_heap_link(FIB_HEAP *H, NODE *y, NODE *x);
NODE *find_min_node(FIB_HEAP *H);
void decrease_key(FIB_HEAP *H, NODE *node, int key);
void cut(FIB_HEAP *H, NODE *node_to_be_decrease, NODE *parent_node);
void cascading_cut(FIB_HEAP *H, NODE *parent_node);
void Delete_Node(FIB_HEAP *H, int dec_key);

FIB_HEAP *make_fib_heap() {
  FIB_HEAP *H;
  H = (FIB_HEAP *)malloc(sizeof(FIB_HEAP));
  H->n = 0;
  H->min = NULL;
  H->phi = 0;
  H->degree = 0;
  return H;
}

// 打印堆内容
void print_heap(NODE *n) {
  NODE *x;
  for (x = n;; x = x->right_sibling) {
    if (x->child == NULL) {
      printf("没有子节点的节点 (%d) \n", x->key);
    } else {
      printf("节点(%d) 有子节点 (%d)\n", x->key, x->child->key);
      print_heap(x->child);
    }
    if (x->right_sibling == n) {
      break;
    }
  }
}

// 插入节点
void insertion(FIB_HEAP *H, NODE *new, int val) {
  new = (NODE *)malloc(sizeof(NODE));
  new->key = val;
  new->degree = 0;
  new->mark = false;
  new->parent = NULL;
  new->child = NULL;
  new->visited = false;
  new->left_sibling = new;
  new->right_sibling = new;
  if (H->min == NULL) {
    H->min = new;
  } else {
    H->min->left_sibling->right_sibling = new;
    new->right_sibling = H->min;
    new->left_sibling = H->min->left_sibling;
    H->min->left_sibling = new;
    if (new->key < H->min->key) {
      H->min = new;
    }
  }
  (H->n)++;
}

// 查找最小节点
NODE *find_min_node(FIB_HEAP *H) {

if (H == NULL) {
    printf(" \n 尚未创建 Fibonacci 堆 \n");
    return NULL;
  } else
    return H->min;
}

// 合并操作
FIB_HEAP *unionHeap(FIB_HEAP *H1, FIB_HEAP *H2) {
  FIB_HEAP *Hnew;
  Hnew = make_fib_heap();
  Hnew->min = H1->min;

  NODE *temp1, *temp2;
  temp1 = Hnew->min->right_sibling;
  temp2 = H2->min->left_sibling;

  Hnew->min->right_sibling->left_sibling = H2->min->left_sibling;
  Hnew->min->right_sibling = H2->min;
  H2->min->left_sibling = Hnew->min;
  temp2->right_sibling = temp1;

  if ((H1->min == NULL) || (H2->min != NULL && H2->min->key < H1->min->key))
    Hnew->min = H2->min;
  Hnew->n = H1->n + H2->n;
  return Hnew;
}

// 计算度数
int cal_degree(int n) {
  int count = 0;
  while (n > 0) {
    n = n / 2;
    count++;
  }
  return count;
}

// 合并函数
void consolidate(FIB_HEAP *H) {
  int degree, i, d;
  degree = cal_degree(H->n);
  NODE *A[degree], *x, *y, *z;
  for (i = 0; i <= degree; i++) {
    A[i] = NULL;
  }
  x = H->min;
  do {
    d = x->degree;
    while (A[d] != NULL) {
      y = A[d];
      if (x->key > y->key) {
        NODE *exchange_help;
        exchange_help = x;
        x = y;
        y = exchange_help;
      }
      if (y == H->min)
        H->min = x;
      fib_heap_link(H, y, x);
      if (y->right_sibling == x)
        H->min = x;
      A[d] = NULL;
      d++;
    }
    A[d] = x;
    x = x->right_sibling;
  } while (x != H->min);

  H->min = NULL;
  for (i = 0; i < degree; i++) {
    if (A[i] != NULL) {
      A[i]->left_sibling = A[i];
      A[i]->right_sibling = A[i];
      if (H->min == NULL) {
        H->min = A[i];
      } else {
        H->min->left_sibling->right_sibling = A[i];
        A[i]->right_sibling = H->min;
        A[i]->left_sibling = H->min->left_sibling;
        H->min->left_sibling = A[i];
        if (A[i]->key < H->min->key) {
          H->min = A[i];
        }
      }
      if (H->min == NULL) {
        H->min = A[i];
      } else if (A[i]->key < H->min->key) {
        H->min = A[i];
      }
    }
  }
}

// 链接操作
void fib_heap_link(FIB_HEAP *H, NODE *y, NODE *x) {
  y->right_sibling->left_sibling = y->left_sibling;
  y->left_sibling->right_sibling = y->right_sibling;

  if (x->right_sibling == x)
    H->min = x;

  y->left_sibling = y;
  y->right_sibling = y;
  y->parent = x;

  if (x->child == NULL) {
    x->child = y;
  }
  y->right_sibling = x->child;
  y->left_sibling = x->child->left_sibling;
  x->child->left_sibling->right_sibling = y;
  x->child->left_sibling = y;
  if ((y->key) < (x->child->key))
    x->child = y;

  (x->degree)++;
}

// 提取最小值
NODE *extract_min(FIB_HEAP *H) {
  if (H->min == NULL)
    printf("\n 堆为空");
  else {
    NODE *temp = H->min;
    NODE *pntr;
    pntr = temp;
    NODE *x = NULL;
    if (temp->child != NULL) {
      x = temp->child;
      do {
        pntr = x->right_sibling;
        (H->min->left_sibling)->right_sibling = x;
        x->right_sibling = H->min;
        x->left_sibling = H->min->left_sibling;
        H->min->left_sibling = x;
        if (x->key < H->min->key)
          H->min = x;
        x->parent = NULL;
        x = pntr;
      } while (pntr != temp->child);
    }

    (temp->left_sibling)->right_sibling = temp->right_sibling;
    (temp->right_sibling)->left_sibling = temp->left_sibling;
    H->min = temp->right_sibling;

    if (temp == temp->right_sibling && temp->child == NULL)
      H->min = NULL;
    else {
      H->min = temp->right_sibling;
      consolidate(H);
    }
    H->n = H->n - 1;
    return temp;
  }
  return H->min;
}

void cut(FIB_HEAP *H, NODE *node_to_be_decrease, NODE *parent_node) {
  NODE *temp_parent_check;

  if (node_to_be_decrease == node_to_be_decrease->right_sibling)
    parent_node->child = NULL;

  node_to_be_decrease->left_sibling->right_sibling = node_to_be_decrease->right_sibling;
  node_to_be_decrease->right_sibling->left_sibling = node_to_be_decrease->left_sibling;
  if (node_to_be_decrease == parent_node->child)
    parent_node->child = node_to_be_decrease->right_sibling;
  (parent_node->degree)--;

  node_to_be_decrease->left_sibling = node_to_be_decrease;
  node_to_be_decrease->right_sibling = node_to_be_decrease;
  H->min->left_sibling->right_sibling = node_to_be_decrease;
  node_to_be_decrease->right_sibling = H->min;
  node_to_be_decrease->left_sibling = H->min->left_sibling;
  H->min->left_sibling = node_to_be_decrease;

  node_to_be_decrease->parent = NULL;
  node_to_be_decrease->mark = false;
}

void cascading_cut(FIB_HEAP *H, NODE *parent_node) {
  NODE *aux;
  aux = parent_node->parent;
  if (aux != NULL) {
    if (parent_node->mark == false) {
      parent_node->mark = true;
    } else {
      cut(H, parent_node, aux);
      cascading_cut(H, aux);
    }
  }
}

void decrease_key(FIB_HEAP *H, NODE *node_to_be_decrease, int new_key) {
  NODE *parent_node;
  if (H == NULL) {
    printf("\n 斐波那契堆未创建 ");
    return;
  }
  if (node_to_be_decrease == NULL) {
    printf("节点不在堆中");
  }

  else {
    if (node_to_be_decrease->key < new_key) {
      printf("\n 减小键值操作的新键值无效 \n ");
    } else {
      node_to_be_decrease->key = new_key;
      parent_node = node_to_be_decrease->parent;
      if ((parent_node != NULL) && (node_to_be_decrease->key < parent_node->key)) {
        printf("\n 调用 cut");
        cut(H, node_to_be_decrease, parent_node);
        printf("\n 调用级联剪切");
        cascading_cut(H, parent_node);
      }
      if (node_to_be_decrease->key < H->min->key) {
        H->min = node_to_be_decrease;
      }
    }
  }
}

void *find_node(FIB_HEAP *H, NODE *n, int key, int new_key) {
  NODE *find_use = n;
NODE *f = NULL;
find_use->visited = true;
if (find_use->key == key) {
    find_use->visited = false;
    f = find_use;
    decrease_key(H, f, new_key);
}
if (find_use->child != NULL) {
    find_node(H, find_use->child, key, new_key);
}
if ((find_use->right_sibling->visited != true)) {
    find_node(H, find_use->right_sibling, key, new_key);
}

find_use->visited = false;
}

FIB_HEAP *insertion_procedure() {
FIB_HEAP *temp;
int no_of_nodes, ele, i;
NODE *new_node;
temp = (FIB_HEAP *)malloc(sizeof(FIB_HEAP));
temp = NULL;
if (temp == NULL) {
temp = make_fib_heap();
}
printf(" \n 输入要插入的节点数 = ");
scanf("%d", &no_of_nodes);
for (i = 1; i <= no_of_nodes; i++) {
printf("\n 节点 %d 和其关键值 = ", i);
scanf("%d", &ele);
insertion(temp, new_node, ele);
}
return temp;
}
void Delete_Node(FIB_HEAP *H, int dec_key) {
NODE *p = NULL;
find_node(H, H->min, dec_key, -5000);
p = extract_min(H);
if (p != NULL)
printf("\n 节点已删除");
else
printf("\n 节点未删除：发生错误");
}

int main(int argc, char **argv) {
NODE *new_node, *min_node, *extracted_min, *node_to_be_decrease, *find_use;
FIB_HEAP *heap, *h1, *h2;
int operation_no, new_key, dec_key, ele, i, no_of_nodes;
heap = (FIB_HEAP *)malloc(sizeof(FIB_HEAP));
heap = NULL;
while (1) {
printf(" \n 操作 \n 1. 创建 Fibonacci 堆 \n 2. 向 Fibonacci 堆中插入节点 \n 3. 查找最小值 \n 4. 合并 \n 5. 提取最小值 \n 6. 降低键值 \n 7. 删除节点 \n 8. 打印堆 \n 9. 退出 \n 输入操作号 = ");
scanf("%d", &operation_no);

switch (operation_no) {
  case 1:
    heap = make_fib_heap();
    break;

  case 2:
    if (heap == NULL) {
      heap = make_fib_heap();
    }
    printf(" 输入要插入的节点数 = ");
    scanf("%d", &no_of_nodes);
    for (i = 1; i <= no_of_nodes; i++) {
      printf("\n 节点 %d 和其关键值 = ", i);
      scanf("%d", &ele);
      insertion(heap, new_node, ele);
    }
    break;

  case 3:
    min_node = find_min_node(heap);
    if (min_node == NULL)
      printf("没有最小值");
    else
      printf("\n 最小值 = %d", min_node->key);
    break;

  case 4:
    if (heap == NULL) {
      printf("\n 未创建 Fibonacci 堆 \n ");
      break;
    }
    h1 = insertion_procedure();
    heap = unionHeap(heap, h1);
    printf("合并后的堆:\n");
    print_heap(heap->min);
    break;

  case 5:
    if (heap == NULL)
      printf("空的 Fibonacci 堆");
    else {
      extracted_min = extract_min(heap);
      printf("\n 最小值 = %d", extracted_min->key);
      printf("\n 更新的堆: \n");
      print_heap(heap->min);
    }
    break;

  case 6:
    if (heap == NULL)
      printf("Fibonacci 堆为空");
    else {
      printf(" \n 要降低的节点 = ");
      scanf("%d", &dec_key);
      printf(" \n 输入新关键值 = ");
      scanf("%d", &new_key);
      find_use = heap->min;
      find_node(heap, find_use, dec_key, new_key);
          printf("\n 键值已减小-对应堆:\n");
          print_heap(heap->min);
        }
        break;
      case 7:
        if (heap == NULL)
          printf("Fibonacci 堆为空");
        else {
          printf(" \n 输入要删除的节点关键值 = ");
          scanf("%d", &dec_key);
          Delete_Node(heap, dec_key);
          printf("\n 节点已删除-对应堆:\n");
          print_heap(heap->min);
          break;
        }
      case 8:
        print_heap(heap->min);
        break;

      case 9:
        free(new_node);
        free(heap);
        exit(0);

      default:
        printf("无效选项");
    }
  }
}
// 在 C++ 中的 Fibonacci 堆上的操作

#include <cmath>
#include <cstdlib>
#include <iostream>

using namespace std;

// 节点创建
struct node {
  int n;
  int degree;
  node *parent;
  node *child;
  node *left;
  node *right;
  char mark;

  char C;
};

// Fibonacci 堆的实现
class FibonacciHeap {
   private:
  int nH;

  node *H;

   public:
  node *InitializeHeap();
  int Fibonnaci_link(node *, node *, node *);
  node *Create_node(int);
  node *Insert(node *, node *);
  node *Union(node *, node *);
  node *Extract_Min(node *);
  int Consolidate(node *);
  int Display(node *);
  node *Find(node *, int);
  int Decrease_key(node *, int, int);
  int Delete_key(node *, int);
  int Cut(node *, node *, node *);
  int Cascase_cut(node *, node *);
  FibonacciHeap() { H = InitializeHeap(); }
};

// 初始化堆
node *FibonacciHeap::InitializeHeap() {
  node *np;
  np = NULL;
  return np;
}

// 创建节点
node *FibonacciHeap::Create_node(int value) {
  node *x = new node;
  x->n = value;
  return x;
}

// 插入节点
node *FibonacciHeap::Insert(node *H, node *x) {
  x->degree = 0;
  x->parent = NULL;
  x->child = NULL;
  x->left = x;
  x->right = x;
  x->mark = 'F';
  x->C = 'N';
  if (H != NULL) {
    (H->left)->right = x;
    x->right = H;
    x->left = H->left;
    H->left = x;
    if (x->n < H->n)
      H = x;
  } else {
    H = x;
  }
  nH = nH + 1;
  return H;
}
// 创建链接
int FibonacciHeap::Fibonnaci_link(node *H1, node *y, node *z) {
  (y->left)->right = y->right;
  (y->right)->left = y->left;
  if (z->right == z)
    H1 = z;
  y->left = y;
  y->right = y;
  y->parent = z;

  if (z->child == NULL)
    z->child = y;

  y->right = z->child;
  y->left = (z->child)->left;
  ((z->child)->left)->right = y;
  (z->child)->left = y;

  if (y->n < (z->child)->n)
    z->child = y;
  z->degree++;
}

// 合并操作
node *FibonacciHeap::Union(node *H1, node *H2) {
  node *np;
  node *H = InitializeHeap();
  H = H1;
  (H->left)->right = H2;
  (H2->left)->right = H;
  np = H->left;
  H->left = H2->left;
  H2->left = np;
  return H;
}

// 显示堆
int FibonacciHeap::Display(node *H) {
  node *p = H;
  if (p == NULL) {
    cout << "空堆" << endl;
    return 0;
  }
  cout << "根节点: " << endl;

  do {
    cout << p->n;
    p = p->right;
    if (p != H) {
      cout << "-->";
    }
  } while (p != H && p->right != NULL);
  cout << endl;
}

// 提取最小值
node *FibonacciHeap::Extract_Min(node *H1) {
  node *p;
  node *ptr;
  node *z = H1;
  p = z;
  ptr = z;
  if (z == NULL)
    return z;

  node *x;
  node *np;

  x = NULL;

  if (z->child != NULL)
    x = z->child;

  if (x != NULL) {
    ptr = x;
    do {
      np = x->right;
      (H1->left)->right = x;
      x->right = H1;
      x->left = H1->left;
      H1->left = x;
      if (x->n < H1->n)
        H1 = x;

      x->parent = NULL;
      x = np;
    } while (np != ptr);
  }

  (z->left)->right = z->right;
  (z->right)->left = z->left;
  H1 = z->right;

  if (z == z->right && z->child == NULL)
    H = NULL;

  else {
    H1 = z->right;
    Consolidate(H1);
  }
  nH = nH - 1;
  return p;
}

// 合并函数
int FibonacciHeap::Consolidate(node *H1) {
  int d, i;
  float f = (log(nH)) / (log(2));
  int D = f;
  node *A[D];

  for (i = 0; i <= D; i++)
    A[i] = NULL;

  node *x = H1;
  node *y;
  node *np;
  node *pt = x;

  do {
    pt = pt->right;

    d = x->degree;

    while (A[d] != NULL)

    {
      y = A[d];

      if (x->n > y->n)

      {
        np = x;

        x = y;

        y = np;
      }

      if (y == H1)
        H1 = x;
      Fibonnaci_link(H1, y, x);
      if (x->right == x)
        H1 = x;
      A[d] = NULL;
      d = d + 1;
    }

    A[d] = x;
    x = x->right;

  }

  while (x != H1);
  H = NULL;
  for (int j = 0; j <= D; j++) {
    if (A[j] != NULL) {
      A[j]->left = A[j];
      A[j]->right = A[j];
      if (H != NULL) {
        (H->left)->right = A[j];
        A[j]->right = H;
        A[j]->left = H->left;
        H->left = A[j];
        if (A[j]->n < H->n)
          H = A[j];
      } else {
        H = A[j];
      }
      if (H == NULL)
        H = A[j];
      else if (A[j]->n < H->n)
        H = A[j];
    }
  }
}

// 减少关键字操作
int FibonacciHeap::Decrease_key(node *H1, int x, int k) {
  node *y;
  if (H1 == NULL) {
    cout << "堆为空" << endl;
    return 0;
  }
  node *ptr = Find(H1, x);
  if (ptr == NULL) {
    cout << "堆中未找到节点" << endl;
    return 1;
  }

  if (ptr->n < k) {
    cout << "输入的键值大于当前键值" << endl;
    return 0;
  }
  ptr->n = k;
  y = ptr->parent;
  if (y != NULL && ptr->n < y->n) {
    Cut(H1, ptr, y);
    Cascase_cut(H1, y);
  }

  if (ptr->n < H->n)
    H = ptr;

  return 0;
}

// 剪切函数
int FibonacciHeap::Cut(node *H1, node *x, node *y)

{
  if (x == x->right)
    y->child = NULL;
  (x->left)->right = x->right;
  (x->right)->left = x->left;
  if (x == y->child)
    y->child = x->right;
  y->degree = y->degree - 1;
  x->right = x;
  x->left = x;
  (H1->left)->right = x;
  x->right = H1;
  x->left = H1->left;
  H1->left = x;
  x->parent = NULL;
}
  x->mark = 'F';
}

// 级联剪切
int FibonacciHeap::Cascase_cut(node *H1, node *y) {
  node *z = y->parent;
  if (z != NULL) {
    if (y->mark == 'F') {
      y->mark = 'T';
    } else

    {
      Cut(H1, y, z);
      Cascase_cut(H1, z);
    }
  }
}

// 搜索函数
node *FibonacciHeap::Find(node *H, int k) {
  node *x = H;
  x->C = 'Y';
  node *p = NULL;
  if (x->n == k) {
    p = x;
    x->C = 'N';
    return p;
  }

  if (p == NULL) {
    if (x->child != NULL)
      p = Find(x->child, k);
    if ((x->right)->C != 'Y')
      p = Find(x->right, k);
  }

  x->C = 'N';
  return p;
}

// 删除键
int FibonacciHeap::Delete_key(node *H1, int k) {
  node *np = NULL;
  int t;
  t = Decrease_key(H1, k, -5000);
  if (!t)
    np = Extract_Min(H);
  if (np != NULL)
    cout << "键已删除" << endl;
  else
    cout << "键未删除" << endl;
  return 0;
}

int main() {
  int n, m, l;
  FibonacciHeap fh;
  node *p;
  node *H;
  H = fh.InitializeHeap();

  p = fh.Create_node(7);
  H = fh.Insert(H, p);
  p = fh.Create_node(3);
  H = fh.Insert(H, p);
  p = fh.Create_node(17);
  H = fh.Insert(H, p);
  p = fh.Create_node(24);
  H = fh.Insert(H, p);

  fh.Display(H);

  p = fh.Extract_Min(H);
  if (p != NULL)
    cout << "最小键的节点：" << p->n << endl;
  else
    cout << "堆为空" << endl;

  m = 26;
  l = 16;
  fh.Decrease_key(H, m, l);

  m = 16;
  fh.Delete_key(H, m);
}

复杂度​

| 插入 | O(1) | | 查找最小值 | O(1) | | 合并 | O(1) | | 提取最小值 | O(log n) | | 减小键值 | O(1) | | 删除节点 | O(log n) |

斐波那契堆应用​

  1. 用于改善 Dijkstra 算法的渐进运行时间。
最后于 更新
